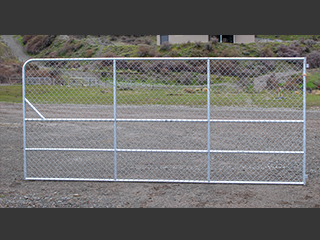

G010A Heavy Mesh Deer Gate with Stress Bar 4.27m

You are here: Go Back / G010A Heavy Mesh Deer Gate with Stress Bar 4.27m

Name:	G010A Heavy Mesh Deer Gate with Stress Bar 4.27m
Price:	$415.00 + GST per gate
Code:	G010A
Product description:	This is a heavy duty deer gate with the added strength of an extra horizontal bar. With bigger and thicker pipe, heavier duty mesh and saddle welding these gates can not be compared to a standard economy gate. Minimum order of 10 gates applies to get the special price
Product notes:
Gate - frame:	42mm OD, pipe thickness 2.5mm
Gate - internal uprights:	3 x 42mm OD, pipe thickness 2.5mm
Gate - internal horizontals:	2 x 42mm OD, pipe thickness 2.5mm
Gate - chain link mesh:	50 x 50 x 3.15mm
Gate - lacing wire:	2.25mm galvanized steel wire
Gate - hinge lugs:	2 x heavy duty 50 x 5 mm hinge lugs to fit 20mm gate gudgeons
Gate - gate latch hook:	welded hook on inside of the frame
Gate - height:	1.88m
Gate - length:	4.27m frame with the hinge lugs extending out another 45mm, this gives an overall length of 4.31m
Gate - galvanized spec:	Fully hot dipped galvanized after welding to a minimum of 500 grams per square metre.
