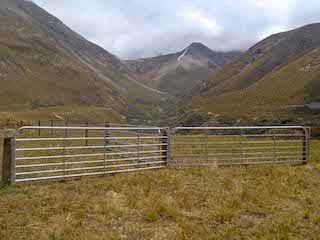

G002A - Heavy Barred Gate 4.31m

You are here: Go Back / G002A - Heavy Barred Gate 4.31m

Name:	G002A - Heavy Barred Gate 4.31m
Price:	$378 +GST
Code:	G002A
Product description:
Product notes:
Gate - frame:	42mm OD, pipe thickness 2.5mm
Gate - internal uprights:	3 x 40mm/6mm flat steel.
Gate - internal horizontals:	5 times 32mm OD, pipe thickness 2.5mm. These are full length; they go through holes drilled in the flat uprights.
Gate - chain link mesh:
Gate - lacing wire:
Gate - hinge lugs:	2 heavy 50mm by 5mm hinge lugs are fully welded to the frame 700mm apart
Gate - gate latch hook:	this is welded on the inside of the frame. Simply insert the gate chain and close the hook, no wire is required. It is 300mm below the top of the gate
Gate - height:	1.05m total including frame
Gate - length:	4.27m frame length with hinge lugs extending out another 45mm. This is an overall length of 4.31m.
Gate - galvanized spec:	The entire gate is hot dipped galvanized after welding to a minimum of 500grams m/2
Gate - weight:	74kg
